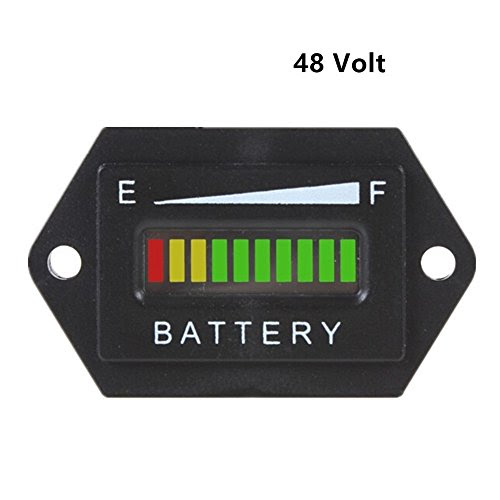

Preview : Aimila 48V LED Battery Charge Discharge Status Indicator Gauge Testers for Lead-acid Battery Golf Cart Club Car Hex

mode : Aimila 48V LED Battery Charge Discharge Status Indicator Gauge Testers for Lead-acid Battery Golf Cart Club Car Hex

Feature: Aimila 48V LED Battery Charge Discharge Status Indicator Gauge Testers for Lead-acid Battery Golf Cart Club Car Hex

• 48V LED Battery Indicator Tester for Lead-acid Battery
• High reliability, low cost and small size. Suitable for lead-Acid battery.
• Please see the wiring diagram on the left. Make sure the C terminal of meter was connected with the "+" pole of battery.
• Application: Motorcycle Golf Carts Car Jet Ski and so on
• Display: 1 red + 2 yellow + 7 green color LEDs for indicator, 10% per LED segment

Aimila 48V LED Battery Charge Discharge Status Indicator Gauge Testers for Lead-acid Battery Golf Cart Club Car Hex Reviews

Moved Permanently

The document has moved here.

Product Description

Model Name:LED Battery Charge Status Indicator

Item Description:
This battery indicator works for 12/24V, 36V ,48V and 72V batteries, can be used on trucks, golf carts, boats, scooters and any other battery operated unit. When the battery is fully charged, the 10th LED(nearest to "F" side) will illuminate green; as the battery discharges, successive lower LED(9th, 8th ... 1st) will light up, one at a time. When the 2nd(near to "E" side) LED lights up, it indicates the battery is almost running out of electricity(only 20% left). Both the 1st and 2nd LED flashing indicates the battery is empty.

Main Features:
- High reliability
- Low cost and small size
- LEDs flash for low electricity / overcharged warning
- Memory option to recall last charge level
- Keyswitch display enable option
- Fits standard panel cut-out
- 10 segment LED bar graph display
- Wide operating temperature range
- Silent operation, no moving parts

Specifications:
-Display: 1 red + 2 yellow + 7 green color LEDs for indicator, 10% per LED segment
-Range Indication: Green: 41 ~ 100%, Yellow: 21 ~ 40%, Red: < 20%
-Operating Voltage: 12/24V, 36V, 48V, 72V
-Operating Current: 20mA
-Temperature Range: -40F ~ 185F
-Humidity: 95% RH + 32C for 2 hours
-Polarity: Positive / Negative / C
-Connection: Pin(+) to Battery(+), Pin(-) to Battery(-), C: Connect to V(+) to make gauge run
-Net Weight: 21g
-Product Size: 5.3cm x 3.2cm x 3.8cm
-After Sales Service: 1 year warranty

Package List:
1 * Battery Indicator
1 * Pack of Accessories
1 * User Manual ( English )

Attention:
1, Please be sure to connect "C" pin of the meter with "+" pole of the battery,otherwise the meter will not indicate correctly.
2, Connected to the battery, the meter will display full. After 155 seconds, the real battery capacity level will display.
